The current HFM application resides on V11.1.1.3 in
production environment. And we are in process of upgrading to V11.1.2.2.
Though production environment is distributed, we have got
one development environment consisting only one server. So, I am going to try
installing and configuring Hyperion EPM system V11.1.2.2 on this single server
environment.
As the server was already used before for Hyperion EPM
system, I did not care much about pre-requisites. Otherwise, before starting
installation and configuration of Hyperion EPM system, we should really follow
the pre-requisite checklist. I will cover this pre-requisite checklist soon in this
blog.
Once required installers from the bundle of EPM system
V11.1.2.2 installers from Oracle Edelivery site are extracted in one folder,
run installTool.cmd
as an administrator
Before proceeding further, let us take a brief overview
about the environment used. I am here interested in single server HFM-FDM
application environment. To give the exact idea, refer to following
architecture.
So, we are interested in installing HFM and FDM on our
server. Please refer following post of this blog to get the exact idea of
required installers.
As per our requirement, I selected only Foundation
Services, HFM and FDM components from the installation list.
Once the installation is successful, we can either start
for configuration or we can finish up the installation process and select to
configure later.
Selected configure to complete the configuration process.
Before starting installation of Hyperion EPM System
V11.1.2.2, we need to create DB schemas for required components. The topic will
be covered in details in a separate post about pre-requisite checklist.
Right now, I am giving a list of DB schemas I created on
Oracle 11g DB residing on Unix server.
Shared Services
|
Hyp11_hss
|
HFM
|
Hyp11_hfm
|
FDM
|
Hyp11_fdm3
|
|
Hyp11_fdm4
|
|
Hyp11_fdm5
|
Referring to above table, give DB schema details.
I decided to go step by step for configuration. First
configured only common settings of Shared Services and configured Shared Services
DB.
After that, I selected to deploy foundation services to
application server.
The default application web server is Weblogic which gets
installed along with EPM system. I am using this default application web
server.
We have got two options either to deploy to single
managed server which is referred as compact deployment or we can choose to
deploy to separate managed servers.
These managed servers are created on weblogic admin
server.
Compact Deployment
Separate Managed Servers:
I selected deployment on separate managed servers; deployment
takes several minutes and almost checks our patience. The only good thing is to
see changing messages like deploying shared services, creating server for
shared services while configuration.
We are now remaining to
configure Foundation services web server. This will be the last option we will
be doing after completing whole configuration.
Now, we will be
configuring HFM components.
Select to start IIS
features.
Refering to our DB schema
table, please give proper schema details created for HFM.

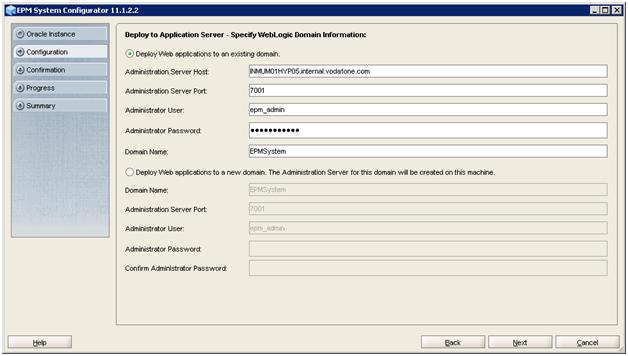

As weblogic domain is
already created while configuring Foundation Services, select option to deploy
to existing weblogic doman.
As I am going to deploy on
separate managed servers, another managed server HFMWeb0 will be created on
weblogic admin server.
Configure DCOM. Enter user in format "DomainName/Username"
Configure application Server and cluster.
Configure HFM Web
server
Provide application web directory and directory name.
Configure Provider services which enables SmartView
Configure HFMLCM service which enables Life Cycle management
Enable Web Services.
During this first attempt, DCOM configuration was failed.
While investigation, found that, the user “hyperionepm”
which I was using for installation and configuration of Hyperion EPM system
V11.1.2.2 is connected to secondary domain controller but the during
configuration, only primary domain controller was hit for DCOM configuration.
We are connected to following domain controller.
For this issue, a new dll file was provided by Oracle as
a temporary solution so that if the user does not exist on primary domain
controller, it checks if the user exists on secondary domain controller.
A patch will be provided later for production
environment.
After HFM, FDM is configured.
